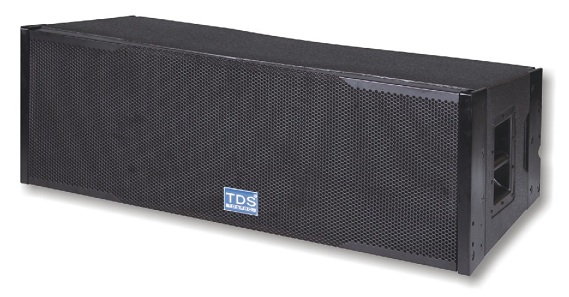

LA312- Dual 12” Line Array Element

The LA312–dual 12” line array is designed to deliver high quality sound reinforcement of full-range frequencies for live music and a variety of applications. Typical uses include concert audio and multi-media presentations of all types.

Contact us for pricing

Description

The LA312–dual 12” line array is designed to deliver high quality sound reinforcement of full-range frequencies for live music and a variety of applications. Typical uses include concert audio and multi-media presentations of all types. The LA312 is a rugged, lightweight centrally vented enclosure housing two high quality 12” woofers. The two advanced components provide high output capabilities with an advantageous power-to-weight ratio. Compact enclosure convenient for fixed and mobile usage. The rigging hardware made from premium-grade alloy aluminium which greatly assures the suspension safety.

Features:

  • Dual12inch three-way line array system.
  • Three units of neodymium compression drivers with 44mm voice coil.
  • High efficiency 6.5inch neodymium MF transducer.
  • Fast installation rigging system.
  • More choices for vertical coverage angle.

Applications:

  • Large scale indoor & outdoor performance
  • Fixed installation in stadium, theatre etc.
  • Large scale mobile performance.

Specifications:

Frequency Range(-10dB)40Hz -- 20KHz
Frequency Response(± 3dB)60Hz -- 18KHz
Horizontal Coverage Angle(-6dB)90°
Vertical Coverage Angle(-6dB)10°
System Input Power RatingLF:   800W Continuous.   1600W Peak
 MF:   300W Continuous.   600W Peak
 HF:   180W Continuous.   360W Peak
Maximum Peak Output139dB
Recommended AmplificationLF:   1200W into 8  ohms
 MF:   800W into 8  ohms
 HF:   600W into 8  ohms
PHYSICAL DATA
Dimensions  (W x  H x  D)1120 x  390 x  500mm
Weight (net) 56 kg
Connectors2 x NL8MP Neutrik Speakon Connectors
Cabinet Material18mm birch plywood
