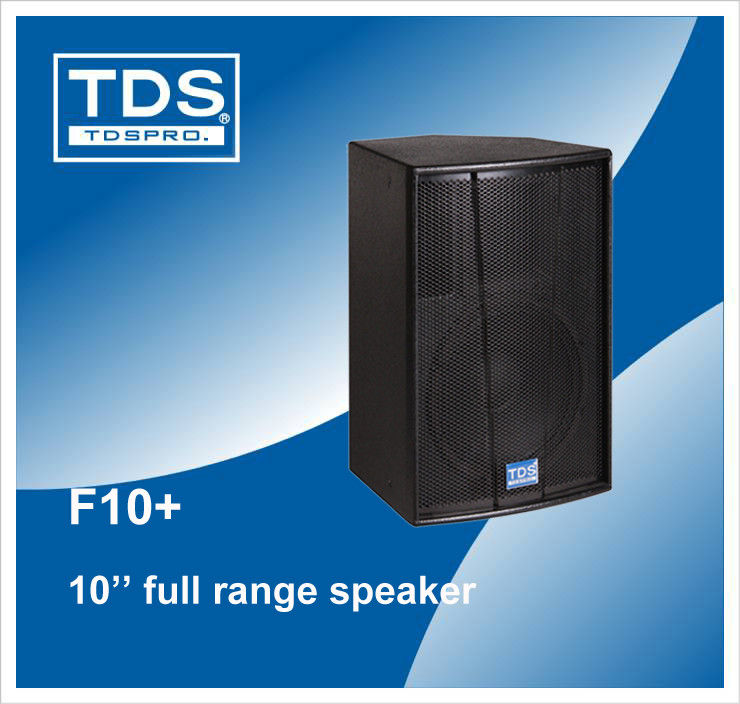

Loudspeaker Enclosure F 10 +

F10+ is a compact two-way passive speaker. It features a high efficiency 10” woofer and a 44mm HF compression driver mounted on a constant directly 90° X 50° Horn.

The F10+ is very flexible in application. With its excellent performance, the F10+ can meet the majority high-end sound reinforcement requirements.

Contact us for pricing
Categories: , Tag:

Description

F10+ is a compact two-way passive speaker. It features a high efficiency 10” woofer and a 44mm HF compression driver mounted on a constant directly 90° X 50° Horn.

The F10+ is very flexible in application. With its excellent performance, the F10+ can meet the majority high-end sound reinforcement requirements.

Features

  • High quality compression driver with 44mm SUZUKI voice coil.
  • 10inch LF transducer with original UKM paper cone.
  • Compact two-way system
  • Flexible mounting options.

Applications

  • Live performance.
  • Disco room.
  • Conference meeting room.
  • Dance club.
System Type: 10inch, 2-way speaker.
Frequency Response:65Hz -- 20kHz ± 3dB
Sensitivity (1W/1M):96 dB.
Impedance:8ohm
Rated Power:250W (AES), 500W (PEAK).
Dispersion:90° (H) X 50° (V)
Drivers:LF driver 10' ' transducer (65mm) voice coil
 HF driver 1' ' exit (44mm) voice coil.
Maximum SPL:125dB
Connectors:2 x Neutrik NL4.
Dimensions:(W) 335mm x (H) 500mm x (D) 310mm
Weight:17kg
