Description

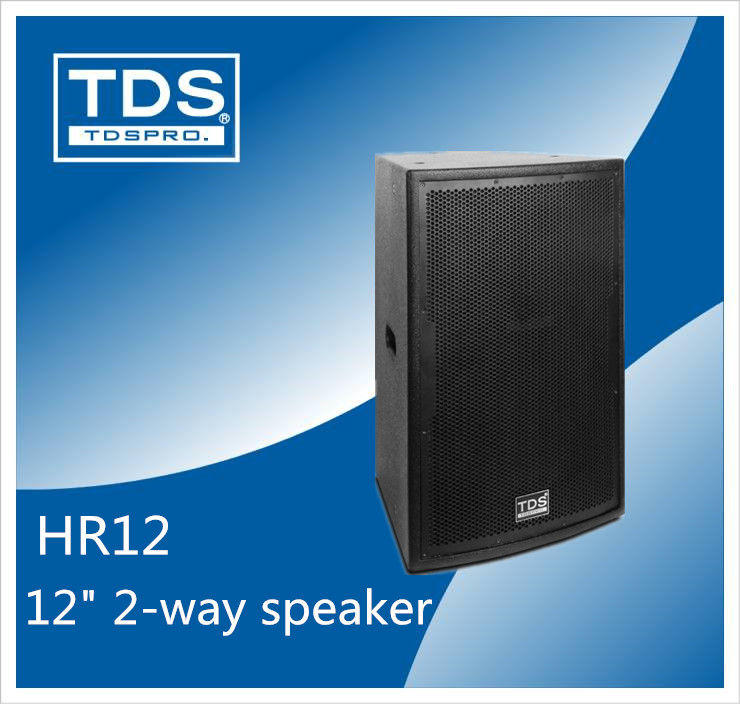

Two-way 12 inch full range speaker
Features:
- B&C compression driver with 44mm voice coil
- 12 inch LF transducer with original UKM paper cone
- 12 inch woofer with 75 mm recone-kit
- High quality birch plywood construction
Applications
- Theatrical sound reinforcement.
- Portable and installed audio-visual systems.
- Concert halls, night clubs and houses of worship
- Stage monitor.
| System type | 2-way 12 inch full range |
| Frequency Response | 45Hz-18KHz±3dB |
| Dispersion:(H×V) | 90°×50° |
| Handing power | 400W(RMS) / 800 (PEAK) |
| Sensitivity | 98dB |
| MAX.SPL. | 129dB |
| Impedance | 8 ohms |
| Drivers | B&C compression drive (44mm) voice coil 12 inch woofer with 75mm recone-kit |
| Suspension | Yes |

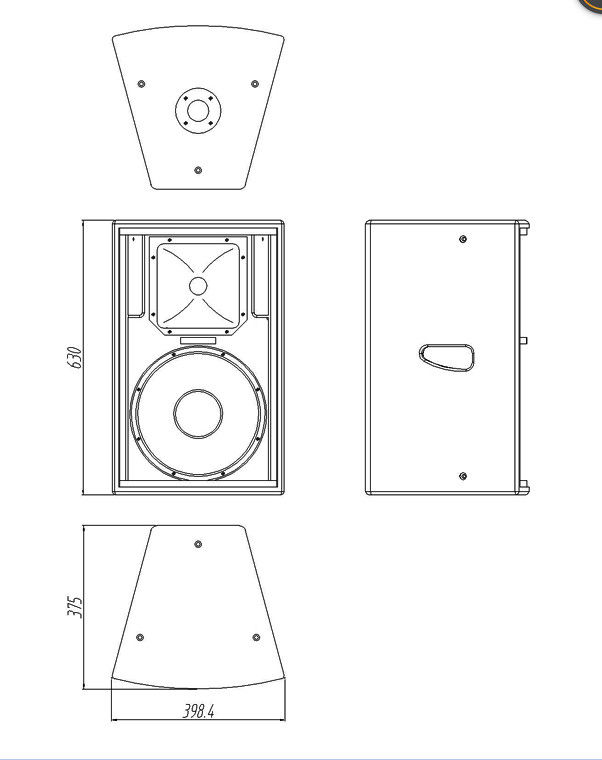

| Dimensions | W399×H630×D375(mm) |
| Weight(net) | 27kg |
