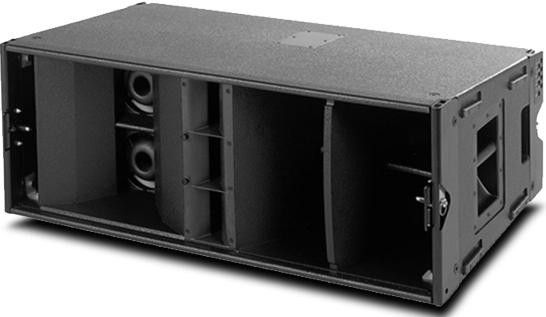

W8LC Three Way Line Array Element

Categories: , Tags: ,



  • High power maximum SPL 129 dB continuous, 135dB peak.
  • Compact, high performance three-way line array enclosure.
  • Superior bass impact all horn design.
  • Wide bandwidth 60Hz-18kHz± 3 dB (single unit).
  • True 90° (-6dB) horizontal MID and HF pattern control.
  • Very smooth off axis response useable out to 120° (10dB).
  • Fast, integral rigging system with variable splay angles.
  • Common grid may be used for flying or ground stacking.
  • Loudspeaker management preset files for a wide variety of configurations.


  • Medium/large scale touring, theatre, stadium, club.
  • Compatible with WL218, SRX728.
Frequency Range(-10dB) 40Hz -- 20KHz
Frequency Response(± 3dB) 60Hz -- 18KHz
Horizontal Coverage Angle(-6dB) 90°
Vertical Coverage Angle(-6dB) 7.5°
System Input Power Rating LF: 400W Continuous. 800W Peak
MF: 200W Continuous. 400W Peak
HF: 100W Continuous. 200W Peak
Maximum Peak Output LF: 129dB Continuous. 139dB Peak
MF: 129dB Continuous. 139dB Peak
HF: 129dB Continuoud. 139dB Peak.
Recommended Amplification LF: 800W into 8 ohms
MF: 600W into 8 ohms
HF: 300W into 8 ohms

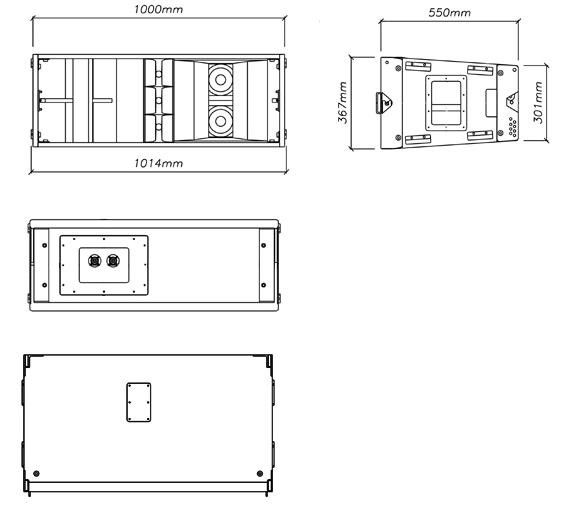

Dimensions (W x H x D) 1000 x 367 x 550mm
Weight (net) 52 kg
Connectors 2 x NL8MP Neutrik Speakon Connectors
Cabinet Material 18mm birch plywood
