Description

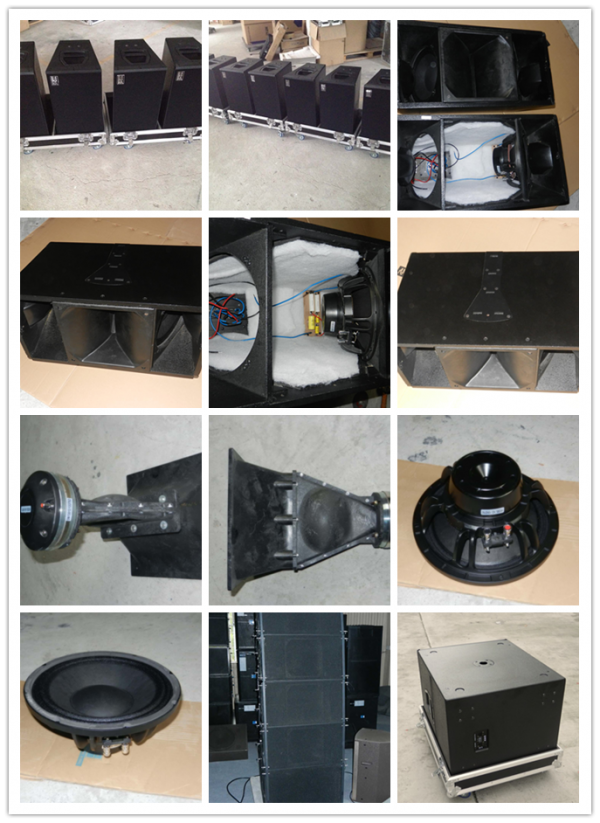

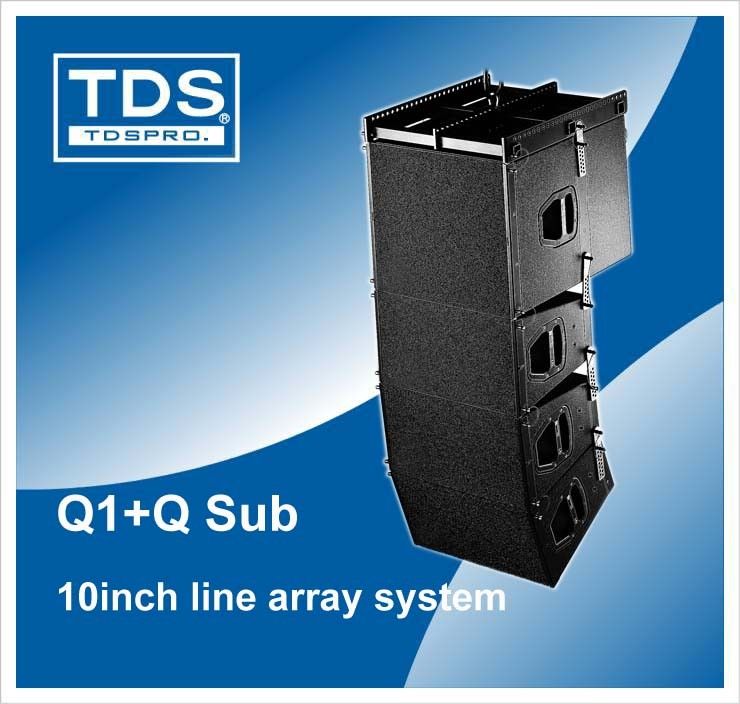

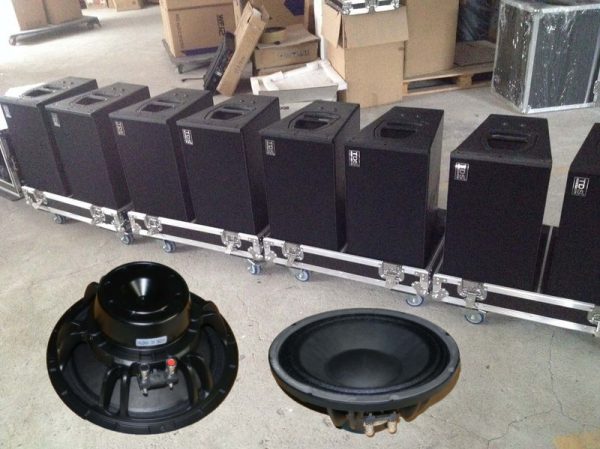

Q1 is a dual 10inch two-way line array system. This system adopts neodymium magnet compression driver with 75mm voice coil which is durable and works at a high efficiency. The Q1 delivers very clear vocal voice. 4 units Q1 working together with 1 unit Q sub to give a full sound system. This system is suitable for a small size live performance, live speech and some high class conference room.
Features:
- All transducers are fitted with neodymium magnets
- Very compact cabinet convenient for mobile usage and fixed installation.
- More choice for vertical coverage angle.
- Fast installation rigging system.
- 2 x NL4MP Neutrik Speakon Connectors.
Applications:
- Small size live performance
- High class conference room.
- Theatre, multi-function hall, church.
Specifications:
| Frequency Range(-10dB) | 60Hz -- 20kHz |
| Frequency Response(± 3dB) | 80Hz -- 18kHz |
| Horizontal Coverage Angle(-6dB) | 75° |
| Vertical Coverage Angle (-6dB) | 15° |
| System Input Power Rating | LF: 400W Continuous. 800W Peak |
| HF: 100W Continuous. 200W Peak | |
| Maximum Peak Output | 139dB |
| Recommended Amplification | LF: 800W into 8 ohms |
| HF: 200W into 8 ohms | |
| PHYSICAL DATA | |
| DimeNsions (W x H x D) | 580 x 308 x 410mm |
| Weight(net) | 23 Kg |
| Connectors | 2 x NL4MP Neutrik Speakon Connectors |
| Cabinet Material | 18mm birch plywood |
