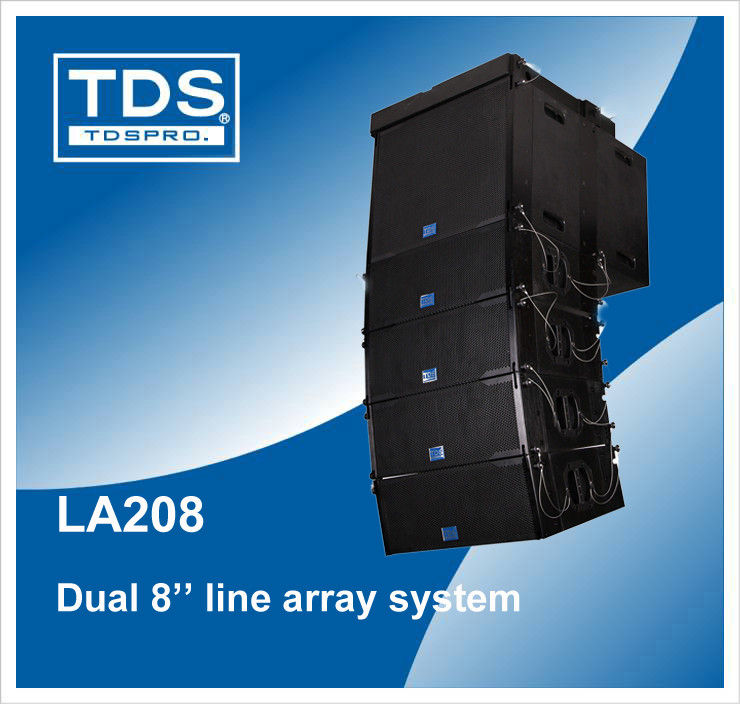

LA-208 Dual 8” Line Array Element

LA208 is a dual 8inch two-way line array system. The LA208 adopts neodymium magnet compression drivers with 44mm voice coils which working at a high efficiency.

The LA208 delivers very clear vocal voice. 4 units of the LA208 works together with 1 unit LA208S to give a full range line array system. This system is suitable for small size live performance, live speech and some high class conference rooms.

Contact us for pricing

Description

LA208 is a dual 8inch two-way line array system. The LA208 adopts neodymium magnet compression drivers with 44mm voice coils which working at a high efficiency.

The LA208 delivers very clear vocal voice. 4 units of the LA208 works together with 1 unit LA208S to give a full range line array system. This system is suitable for small size live performance, live speech and some high class conference rooms.

Features:

  • Dual 8inch, two-way line array system.
  • Two neodymium compression drivers with 44mm voice coil.
  • Compact cabinet convenient for mobile usage and fixed installation.
  • More choice for vertical coverage angle.
  •  Fast installation rigging system.
  • 2 x NL4MP Neutrik Speakon Connectors.

Applications:

  • Small size live performance
  • High class conference room
  • Theatre, multi-function hall, church.
  • Concert Speaker System , Concert Line Array Speaker System,Pa Speaker System, Line Array Box

Specifications:

Frequency Range(-10dB)70Hz -- 20kHz
Frequency Response(±   3dB)80Hz -- 18kHz
Horizontal Coverage Angle(-6dB)90°
Vertical Coverage Angle  (-6dB)10°
System Input Power RatingLF:   300W Continuous.   600W Peak
 HF:   120W Continuous.   240W Peak
Maximum Peak Output132dB
Recommended AmplificationLF:   800W into 8  ohms
 HF:   500W into 8  ohms
PHYSICAL DATA
Dimensions  (W x  H x  D)672 x  247 x  450mm
Weight(net)19.8 Kg
Connectors2 x NL4MP Neutrik Speakon Connectors
Cabinet Material18mm birch plywood
