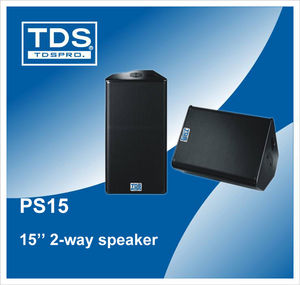

PS15 15” Loudspeaker Enclosure

The PS15 is a high powered, 2-way loudspeaker system, designed for sound reinforcement applications. The system is comprised of a 15” low frequency driver and a large-format, high frequency compression driver, coupled to a constant-directivity 100° X 55° Horn. Combining 102dB sensitivity with 500 watts power handling, the PS15 delivers sound pressure levels well beyond those typical of systems its size.

Contact us for pricing
Categories: , Tag:

Description

The PS15 is a high powered, 2-way loudspeaker system, designed for sound reinforcement applications. The system is comprised of a 15” low frequency driver and a large-format, high frequency compression driver, coupled to a constant-directivity 100° X 55° Horn. Combining 102dB sensitivity with 500 watts power handling, the PS15 delivers sound pressure levels well beyond those typical of systems its size.

Features:

  • Wide-bandwidth system.
  • Top hat fitting for speaker stand mounting.
  • User rotatable 100° X 55° Horn

Applications:

  • High-end club live performance.
  • High powered stage monitoring.
  • Full-in system in conjunction with larger TDS system.

Specifications:

System Type 15inch, 2-way speaker
Frequency Response 50Hz -- 18kHz ± 3dB
Sensitivity (1W/1M) 102dB.
Impedance 8ohms
Rated Power 500W (AES), 1000W (PEAK).
Dispersion 100° (H) X 55° (V)
Drivers LF driver 15' ' transducer (75mm) voice coil
 HF driver 1.5' ' exit (75mm) voice coil.
Maximum SPL 138 dB.
Connectors 2 x Neutrik NL4.

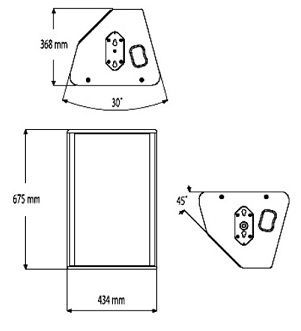

Dimensions (W) 434mm x (H) 675mm x (D) 368mm
Weight 27kg
